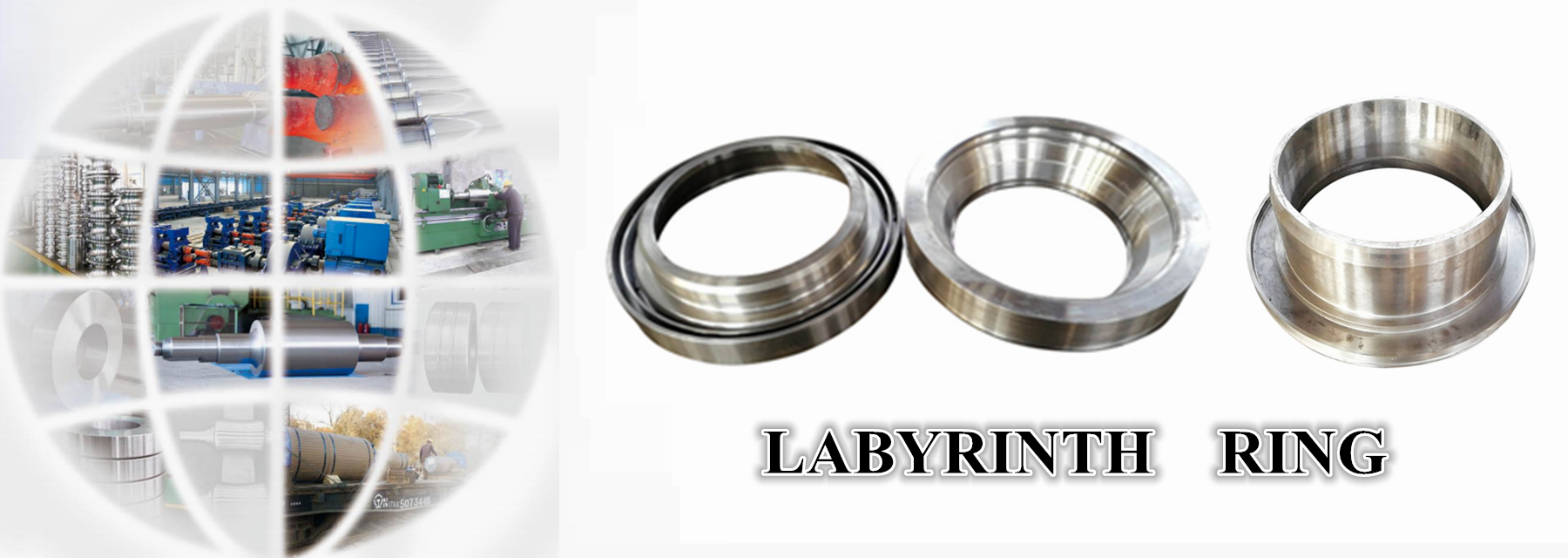

LABYRINTH RING

They are mainly used for rolling mill machiney, mine machinery, chemical and petroleum industries, wind turbine industry, shipbuilding industry, cement industry and other all kinds of machinery spare parts.

Quantity:

901234568


       We can supply all kinds of forgings according to customer's requirements with different designs and materials. For example, forged roller shafts, forged pipe moulds, forged steel blocks for die and moulds, forged gears, forged round steel and son. They are mainly used for rolling mill machiney, mine machinery, chemical and petroleum industries, wind turbine industry, shipbuilding industry and so on.


        Besides, we can manufature all kinds of high quality castings according to customers' requirements, for example wear plates, hammer heads, rolling mill housing, bearing chock, slag pot, gear, ingot mould, rotary kiln, rotary kiln wheel belt and so on. They are mainly used for mine machinery, rolling mills, cement industry and other all kinds of machinery spare parts.

Parts of Rolling Mill
Name Specification Material Hardness Note
Labyringth Rings 1210X463X2104mm AD160 / Steel 42CrMo4 / C40E 50-55HSD / 46-52HRC Prevent water from entering the bearing
Chock  Used for Hot Rolling Mill 1700 / Cold Rolling Mill  Steel 30 (Cast)+ Assembly Parts Steel 45 And Q235 / Steel 40 Cr (Forged) / Rolled Steel 17MnSi
Chock for Working Rolls Mill 1700 Stand 4-6 / Bottom Chock / Upper Chock / Top Chock of Backup Roll-Part of  Reversing Cold Mill / Block of the Fronthead
Coupling
Steel 45 (Forged) / Steel 35 / Steel 35CrMo(Casting)
Used for Rolling Mill
Sleeve
Cast 25#
Used for Bearing of Sizing Mill
Cover
Steel 35 Casting / Rolled Steel 17MnSi / Steel 20 / Steel 45 / Steel 30
Parts of Cold Rolling Mill
Post
Steel 35 Casting
Parts of Cold Rolling Mill
Sprocket
Steel 35CrMnSi Casting
Used for Mining Machinery
Roller
Steel 35 Casting
Section of  Wagon Tripper
Steel 45 (Rolled)
Shaft


Key-steel
Rolled Steel 45 Mn

Groove of the Rolling Mill
Stell 35 Casting

Shaft-stem
Steel 40CrNi
Parts of  Rolling Mill
Bushing
Brass
Parts of  Rolling Mill
Lever
Steel 30 Casting
Parts of  Rolling Mill
Spindle's Head of  the Die
Steel  45

Gear Bushing
Steel 45
Parts of  Rolling Mill
Top Case
Steel 20
Parts of  Rolling Mill
Bottom Case
Steel 20
Parts of  Rolling Mill
Fork
Steel 20 (Forged)
Parts of  Rolling Mill
Hollow Shaft
Steel 40CrNi (Forged)
Parts of  Rolling Mill
Axle
Steel 38CrMo (Forged)
Parts of the Roller Table of the Rolling Mill
Die-holder
Steel 40CrNi (Forged)
Parts of  Metal-processing Die
Hammer Head
5CrNiMo(Forged)
Parts of  Metal-processing Die
Gear
Steel 35 Casting
Parts of  Metal-processing Die
Shaft of Stand of  Pipe-cutting Machine
Forged 45#

Stem of the Press Mauntbard 1977
40CrNiMo

微信图片_20200730171234微信图片_20200730171252微信图片_20200730171229

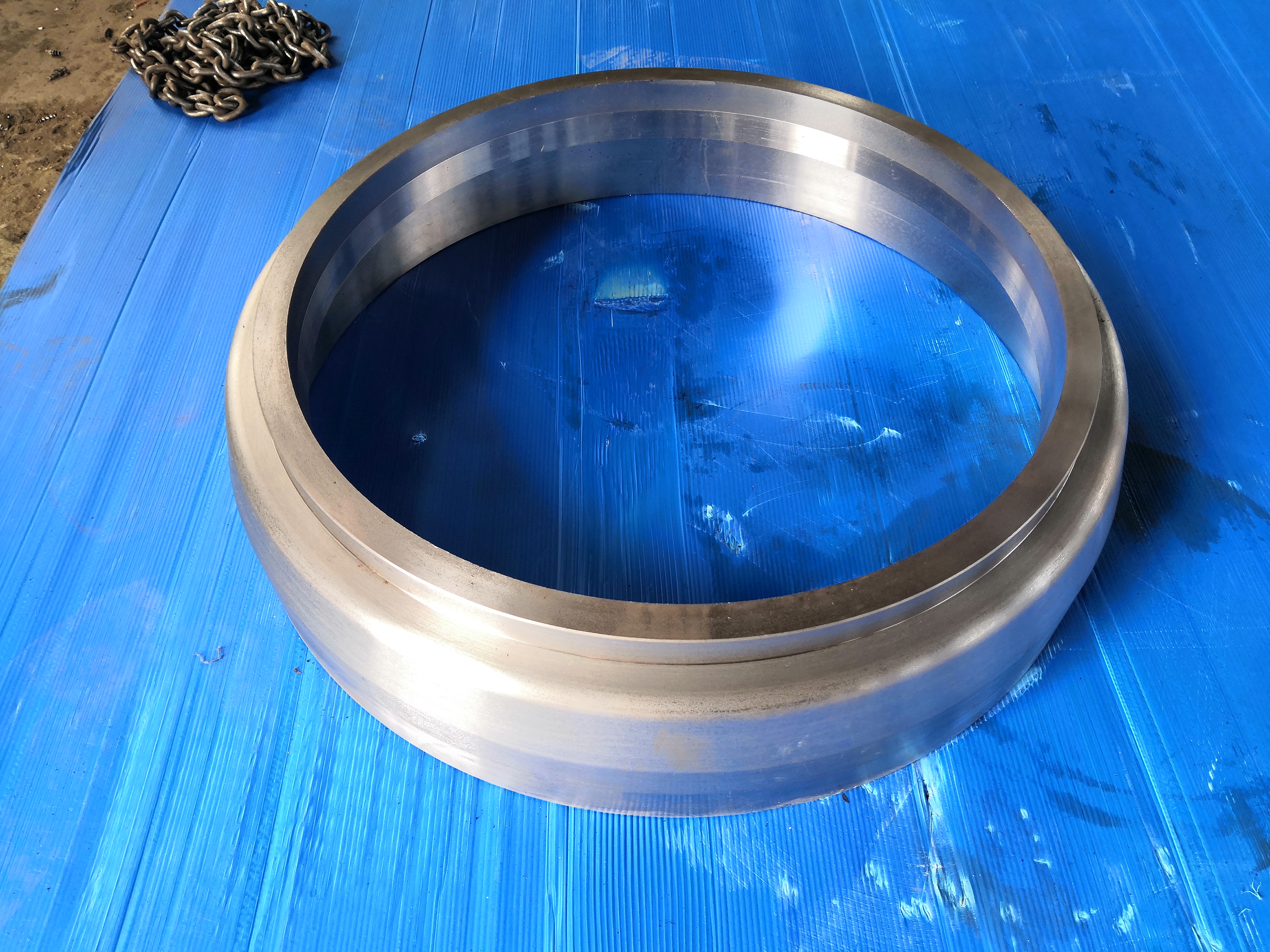

Type:  Labyrinth Forging Rings
Application: Petroleum,Chemical,Marine,Drug,Gas,Metallurgy,Mechanical,Food,etc..
Material: Carbon Steel, Alloy Steel (20CrMnMo, 42CrMo4 and 18CrNiMo7-6 etc.), Stainless Steel,etc.
Dimension: OD up to 4,800mm; ID up to 4,600mm; Thickness up to 400mm
Weight: Max.50 ton
The Process As Follow: ingot → heat → forging → heat treatment(normalizing+tempering) → inspection  → rough machining → UT → 2nd heat treatment → finishing machining → inspection .
Quality Control: UT,MT,RT,PT,chemical composition test,mechanical property test,etc.
Heat Treatment: Normalize,Quenching,Tempering,Anealled.
Surface Treatment: painting,plating,polishing,black oxide,transparent anti-rust oil.
Inspection: Besides our in-house inspecion, you could also choose a third party inspection.


If you want to learn more our products, please click this link : https://tsweilang.en.made-in-china.com/
