ROLLER BEARING
You are here: Home » Products » SPARE PARTS OF ROLLING MILL » ROLLER BEARING

ROLLER BEARING

Main factors which influence cylindrical roller bearing performance include, but are not limited to: Raw material, Heat treatment, Symmetrical rollers, Roller tolerances, Special roller profile, Cages. Weilang only focus high quality and super precision

Quantity:

6235414_副本


Range of size

Can manufacture steel bearings outer diameter from Φ 30mm-Φ6300mm.

Bearing Types

Deep groove ball bearings, single / double/ four row cylindrical roller bearings, self aligning roller bearings,single / double/ four row tapered roller bearings , thrust self-aligning roller bearings and many kinds of bearings

with different structures.

Application Fields

wire & bar mill, hot strip mills, cold strip mills, sectionmill,

sendzimir mill, continuous casting machine supporting bearing and mill machine

and fields of bearing block for rolling mill.

Manufacture Capacity

Can provide 400 kinds of bearing specifications and

30,000 sets of bearings to customer.

Manufacture Period

Bearing steel products 35 days, carburizing steel proucts 50 days.


Bearing maintenance


1. The bearing shall be stored in a clean and dry environment, and the temperature and humidity shall be controlled in handling and storage. The temperature and humidity shall be within an acceptable fixed range and shall be more than 30cm from the ground.

2. Some bearings have a certain shelf life. For example, bearings with dust caps and oil seals, when stored for a period of time, the starting torque of the bearing will be larger than that of the new bearing, and the lubrication performance of the grease will be damaged due to the long time of storage.

3. In order to ensure the normal and reliable operation of the bearing, sufficient lubrication must be applied to prevent direct metal contact between the rolling body raceway and cage, causing wear and bearing surface corrosion. Therefore, in various applications, it is very important to choose the appropriate lubricant and lubrication method, at the same time, it also needs correct maintenance.

4. Lubricant mainly based on the operation condition of actual choice, namely: the temperature range and speed as well as the surrounding environmental impact if can ensure reliable lubrication, the bearing lubricant used dose the most hours, the lowest operating temperature, but at the same time other role, such as sealing, consumption will increase accordingly when installing a bearing, filling grease is generally not the remaining space filled with the bearing, bearing box control the remaining space of 1/3, 1/2, much more susceptible to high temperature.

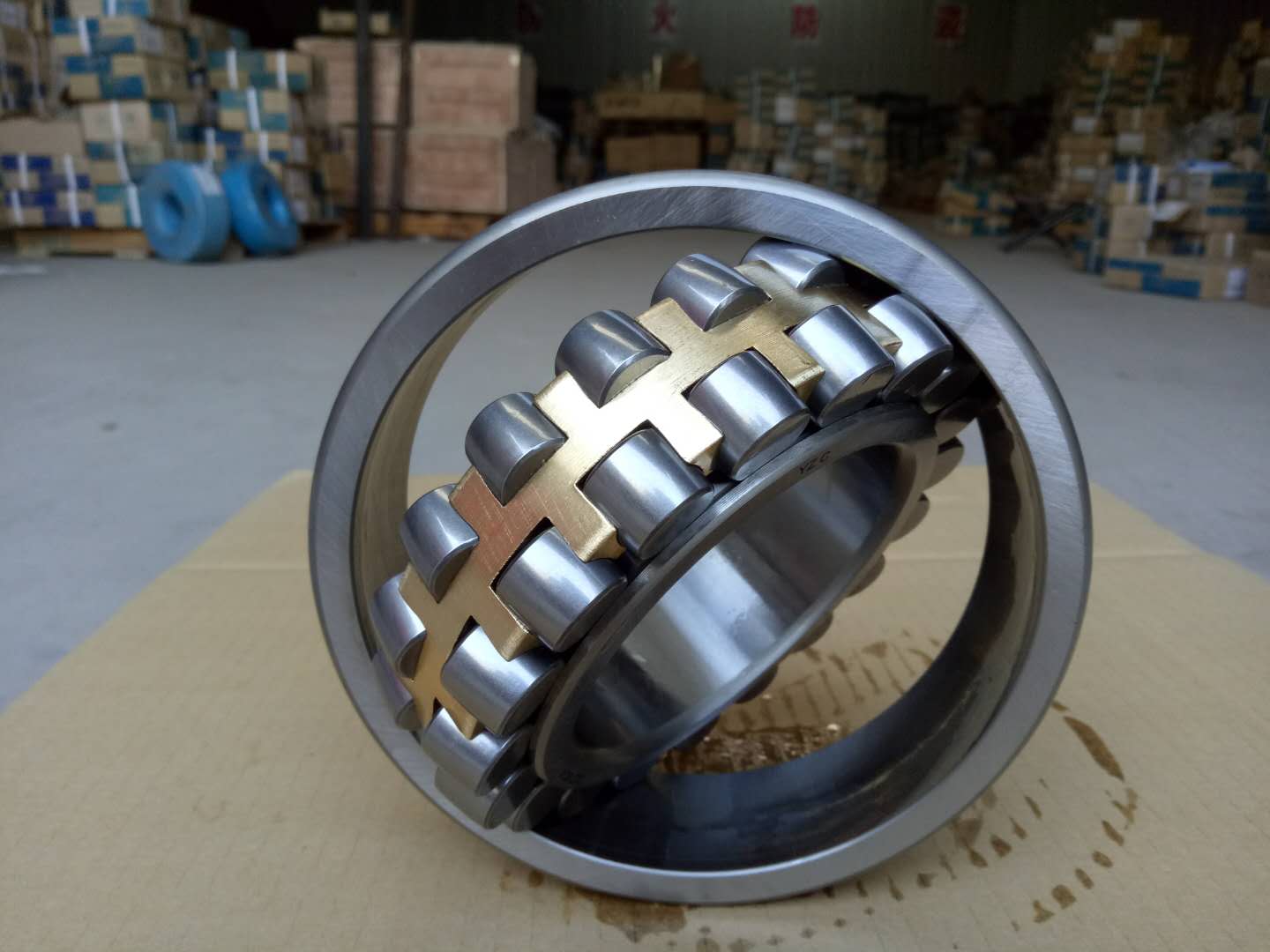

777745微信图片_20180120165431

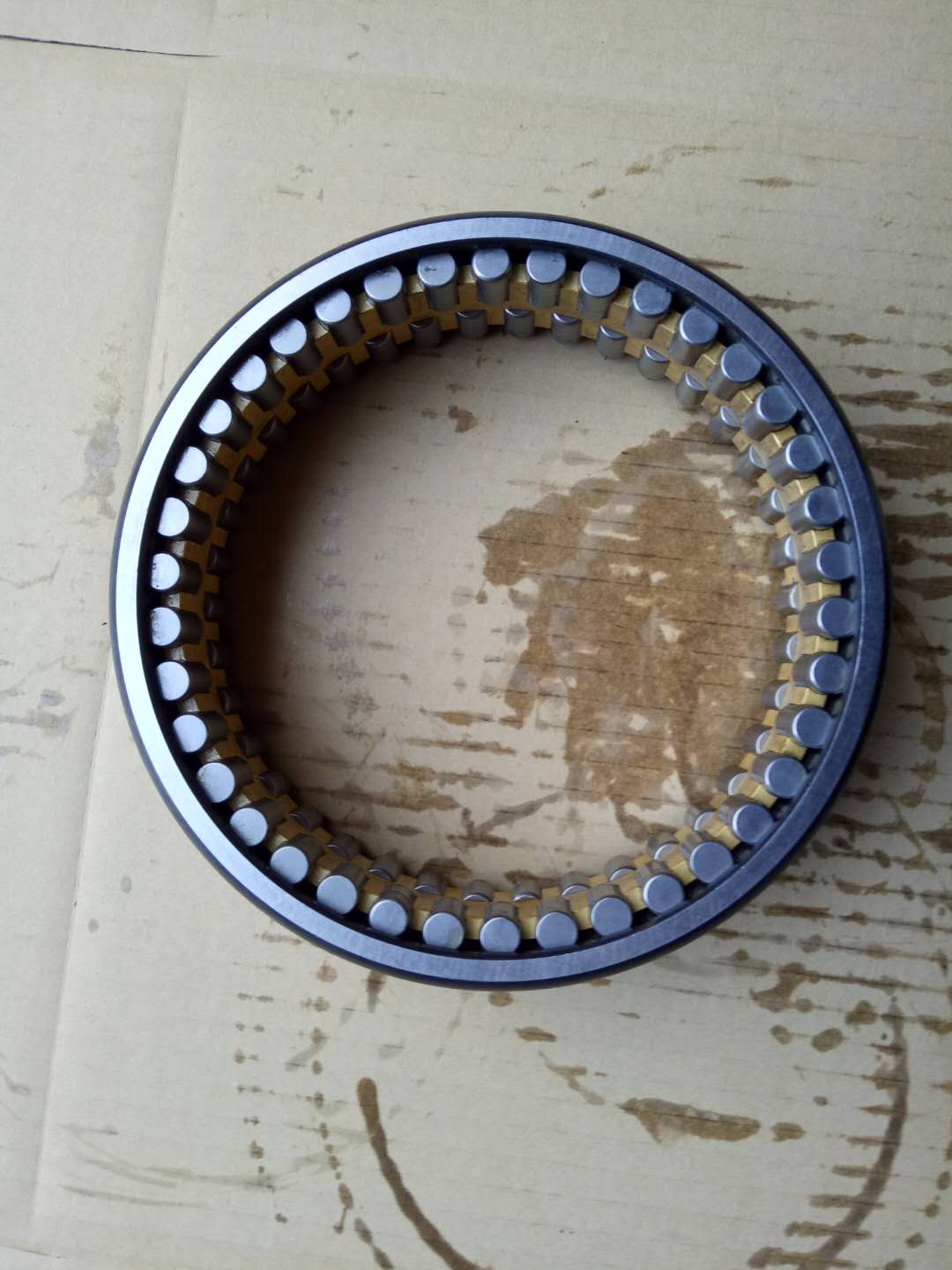

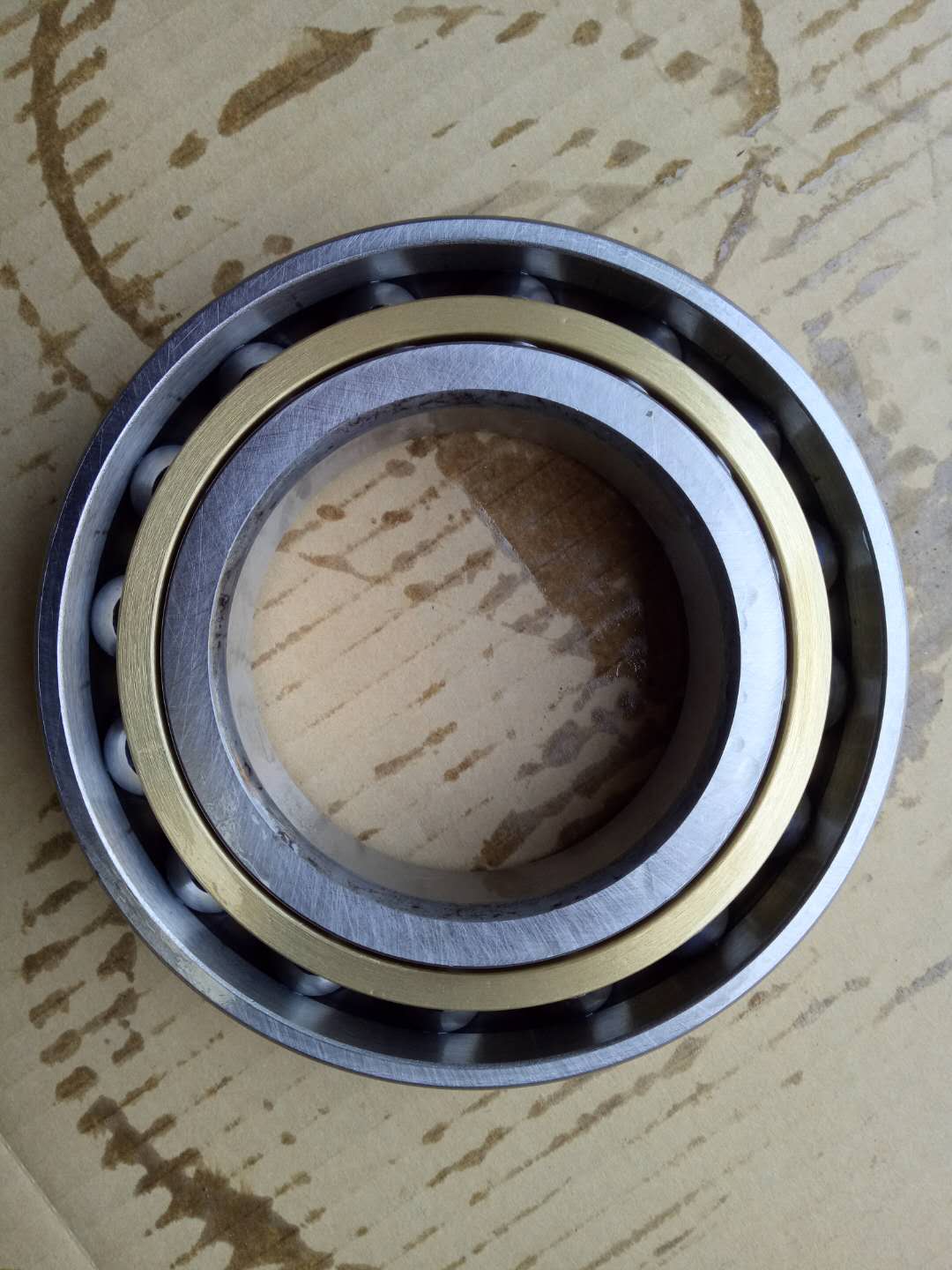

微信图片_20180120165325微信图片_20180120165525
